SHEET-7(SECTIONAL ORTHOGRAPHIC PROJECTIONS)
SWN | SHEET-7
Indus University
CSE Section
SHEET-7
1).Draw (i) Elevation (ii) Full sectional LHSV, by First angle method.
2).Draw (i) Front view (ii) Top view (iii) Full sectional RHSV. Use 3rd angle method
3).Draw (i) Full Sectional Front view (ii) Top view (iii) LHSV. Use 1st angle method.
4).Draw (i) Full sectional Elevation (ii) Plan (iii) RHSV , by third angle method.

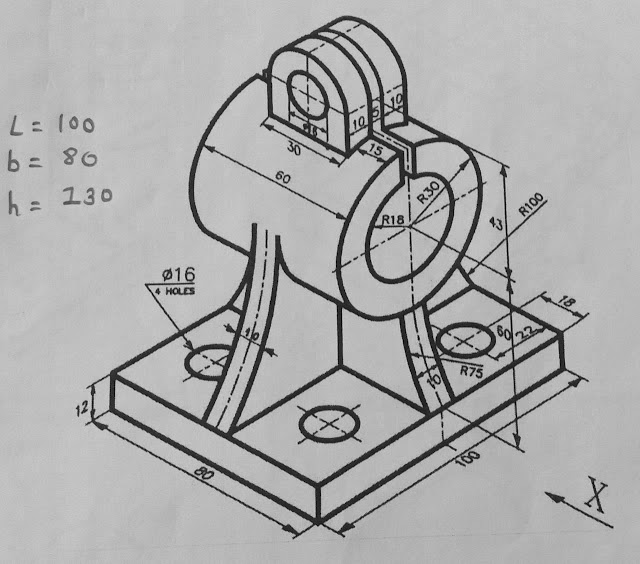

5).By third angle method, draw (i) Elevation (ii) Full sectional LHSV (iii) Plan
